01 · The Brief

One pool court. One very long greenway.

For ICO Development and KCB Architecture, the courtyard amenities at Van Winkle Crossing in Murray came down to two pieces: a pool amenity and a greenway, drawn as one concept plan, then seen from above and walked at eye level. A greenway isn’t the leftover strip between buildings; here it carries most of the program, fire pit lounge, game lawns, dining, built-in chaise loungers, all strung under bistro lights. The concept carried on into permit drawings from 2020 through 2023.

Van Winkle Crossing, bird’s eye view (concept rendering)
Team
ICO Development + KCB Architecture
Scope
Courtyard Amenities
Place
Murray, UT
State
Concept · 21 views
Where it started

The first marks on paper, before the plan settled.

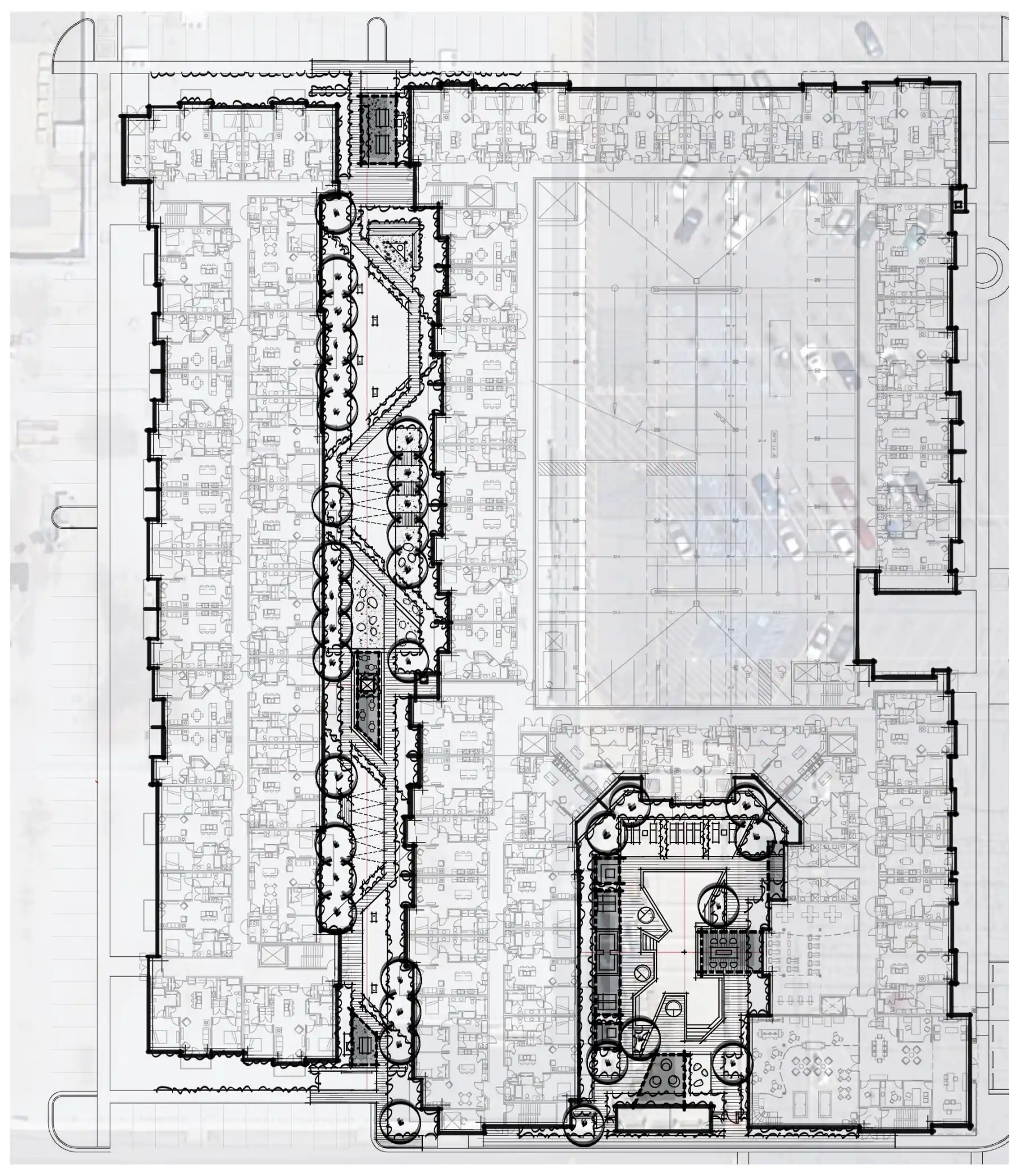

Plan AlternateVan Winkle Crossing, plan alternate (concept sketch)

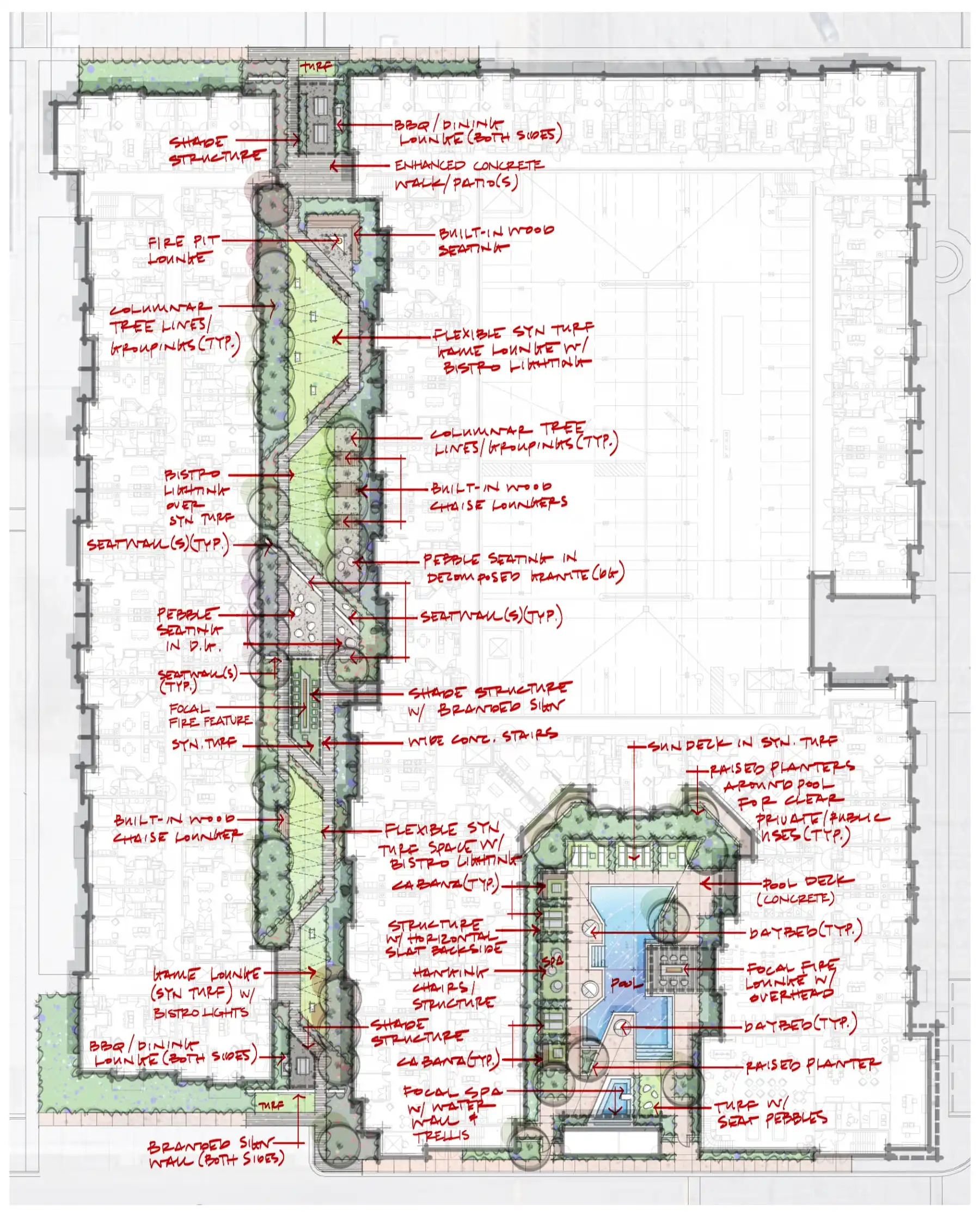

Concept NotesVan Winkle Crossing, concept notes (concept sketch)

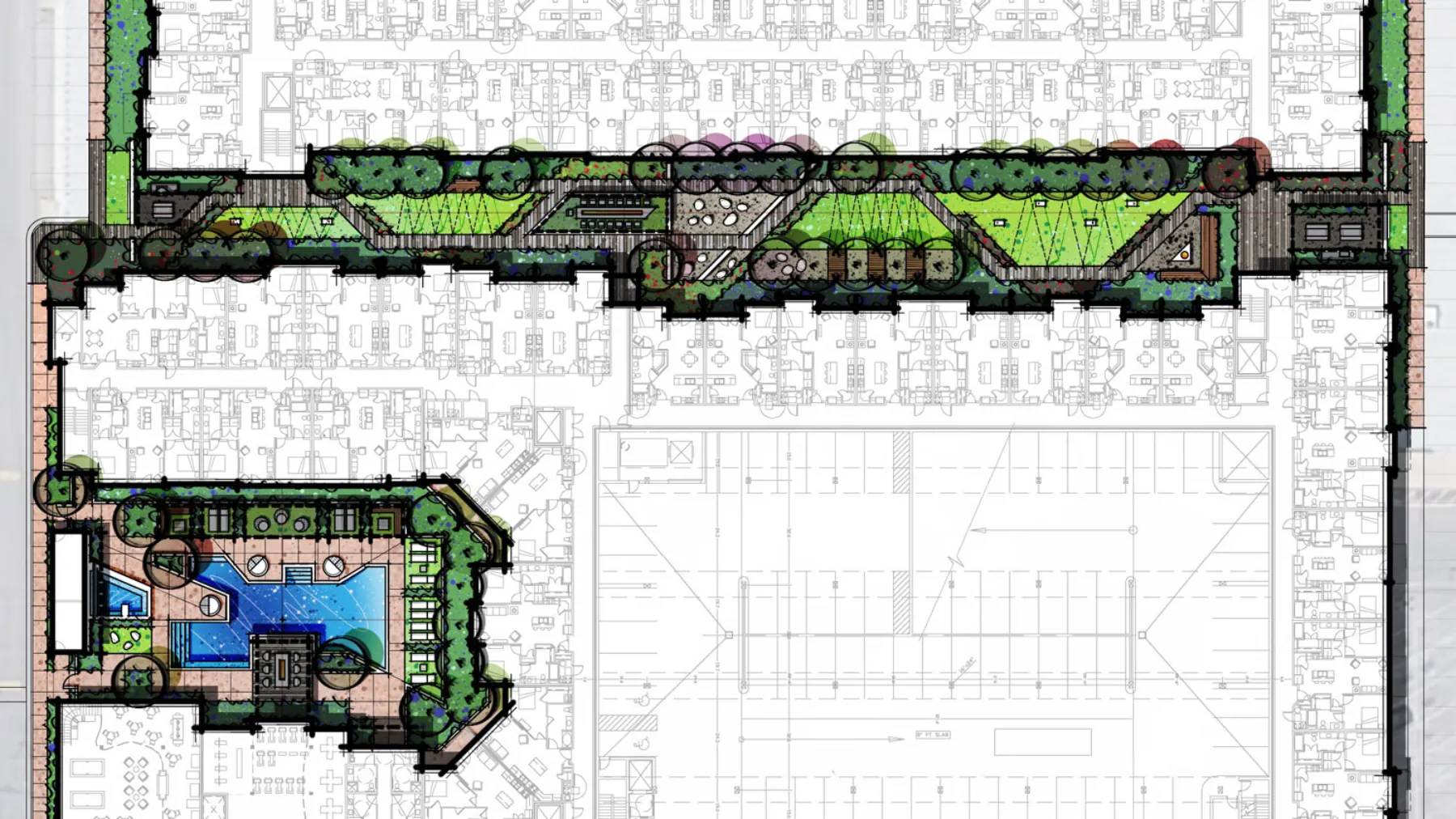

Concept PlanVan Winkle Crossing, concept plan
The idea, on one sheet.

One drawing that puts the whole outdoor program on the table before anything is modelled in 3D.

Then, in 3D

Every view below is the concept as we drew it, walked before anything was built.

Bird’s Eye ViewVan Winkle Crossing, bird’s eye view (concept rendering)
Pool AmenityVan Winkle Crossing, pool amenity (concept rendering)
GreenwayVan Winkle Crossing, greenway (concept rendering)
Van Winkle Crossing, greenway from above (concept rendering)
